Spectroscopy Meter For Shade and UV Radiation Evaluation


Spectroscopy is the research of the interplay between gentle and matter. From testing whether or not a fruit is ripe to house exploration and figuring out atomic constructions, this area of research is broadly used. The Close to InfraRed (NIR) spectroscopy is utilized in milk and bio constituent evaluation and in could printing and manufacturing work to search out the correct vary of color. The electromagnetic spectrum vary lined in NIR spectroscopy is 780-2526nm. The spectrometers are additionally fairly costly for this vary. This spectroscopy gadget on this undertaking can be utilized for spectral evaluation in real-time and will be made at a cost-effective value. This sensor will not be solely restricted to seen gentle vary (380nm to 700 nm), but additionally covers the NIR spectral vary. The parts listed within the invoice of supplies desk are wanted for this undertaking.

Fig 1.

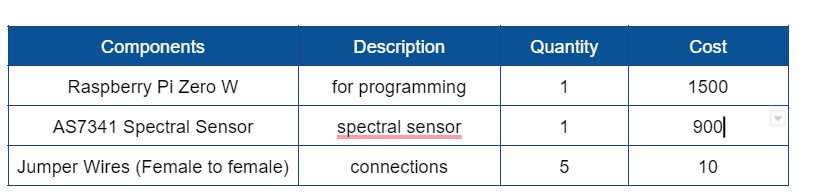

Invoice Of Supplies

Coding

The Raspberry Pi board has to have the ability to learn the sensor knowledge, therefore the primary standards is to verify the I2C interface. Teo allow the interface from the “setting”, the next command needs to be given within the terminal.

sudo raspi-config



The I2C interface must be chosen and enabled. Save the “settings”, earlier than rebooting the Pi board. The standing of the I2C units should be checked whether or not they’re open or not. The next command must be given if the I2C is efficiently enabled and the interface is working.

I2cdetect -y 1

The terminal scans and provides the output of all I2C units detected. If the spectral sensor is linked to I2C pins of the RPI board then the next output is obtained. Refer Fig 2.

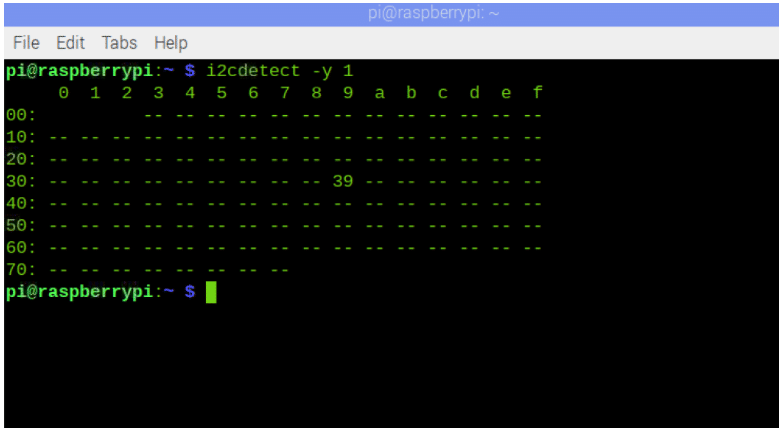

Fig 2. Scanning the I2C sensor

The following step is to put in the library for the spectral sensor. This may be performed by putting in the Python module and utilizing the next command within the terminal.

sudo pip3pip set up adafruit-circuitpython-as7341

The python IDLE must be opened for coding. The AS7341 spectral sensor must be imported from the python module that was earlier put in. The spectral sensor LED mode has to now be on for an in depth and correct spectrograph. For higher accuracy even in darkish, the LED present must be set to the worth of 30, in order that it’s neither brilliant, nor dim. Be aware that the worth will be modified and the LED may also be turned off, for the specified accuracy, primarily based on ambient gentle. This doesn’t have an effect on your spectrograph.

To verify the spectral worth of every wavelength of sunshine within the seen vary, the whereas loop is added to this system. This could additionally carry out spectral evaluation for the NIR vary, making it helpful for purposes like testing biomolecules and constituents of liquids.

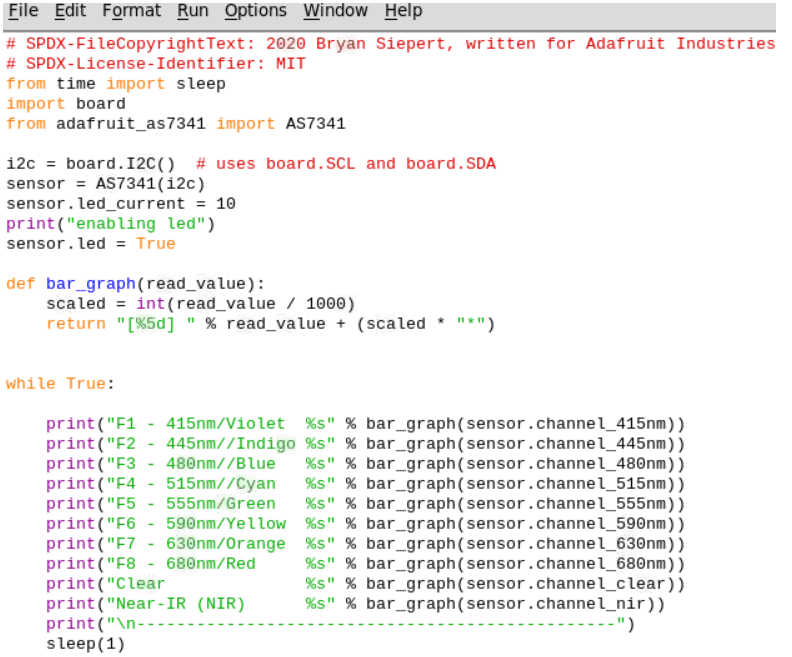

Fig 3. Code for spectral evaluation

Connection

The AS7341 spectral sensor is linked as proven within the circuit diagram. (Refer Fig 4.)

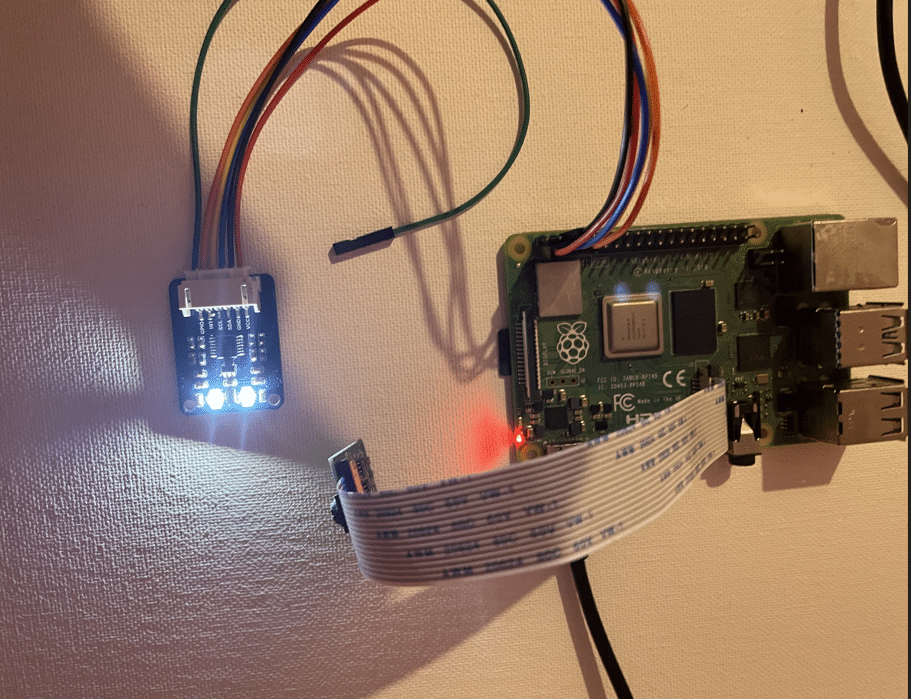

Fig 4. Connections

Testing

Fig 5. Testing

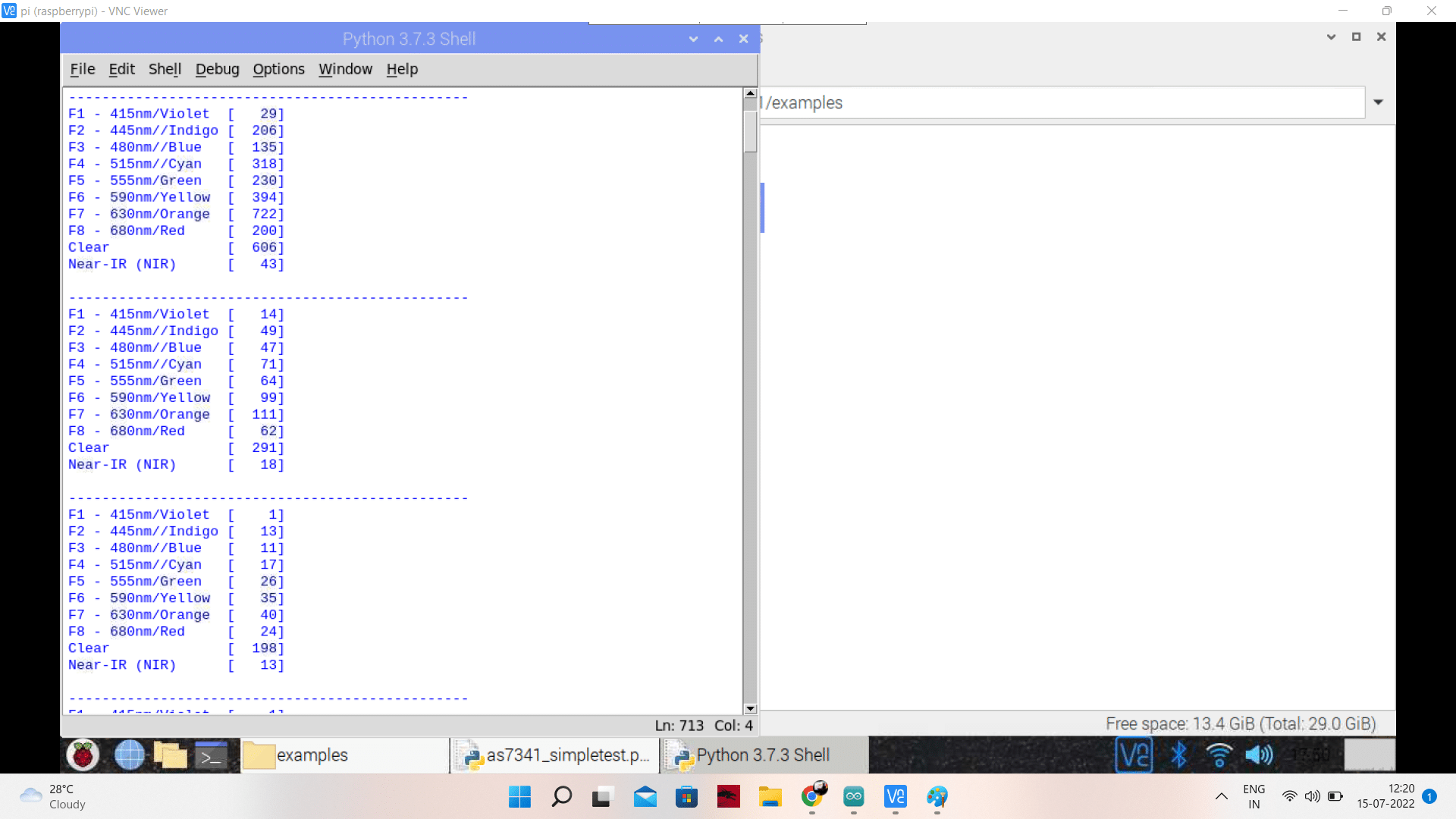

Fig 6. The spectral evaluation outcomes proven in python promote in real-time

 AS7341, the spectral evaluation is completed. The merchandise can vary from liquids to solids.   To do the spectrography or spectral evaluation of any specific product shade and to detect colours in a portray or you need to use its NOIR studying to do evaluation of constituent of milk.

Obtain Code
