Marco Valleggi’s Tiny Arcade Cupboard Upcycles a Intelligent Compact CRT From an Outdated Video Intercom



Italian maker Marco Valleggi has constructed a tiny desktop arcade cupboard, which is extra convincing than most, because of an precise cathode-ray tube (CRT) show — salvaged from a classic video intercom.

“[The intercom display] is a CRT, though black and white, nevertheless it’s tremendous skinny,” Valleggi explains, in translation, of the machine chosen for conversion. “It it has nothing behind it, there’s nothing, and but it’s a CRT. That is doable because of a really outdated Sony expertise the place the electron gun, as a substitute of being positioned behind the display, is positioned beneath and it shoots the picture on a curved display.”

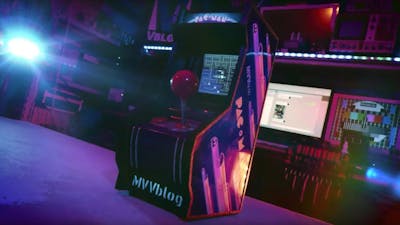

A desktop arcade cupboard with an actual CRT? Attainable, in case you salvage a show from an outdated video intercom. (📹: MVVblog)

With the show chosen, Valleggi wanted the arcade {hardware} — and turned to a different off-the-shelf machine, albeit one a little bit newer than the video intercom: a duplicate joystick designed to be plugged right into a TV by means of a composite video enter, which hosts a collection of emulated Namco arcade classics, together with Pac-Man.

The cupboard, in the meantime, is designed to imitate the looks of a traditional arcade upright — however in miniature. The outside is made in wooden — “in any other case,” Valleggi explains, “what the hell is the cupboard” — with 3D printed internals to carry all of the {hardware} in place.

“With the CRT down there it is unimaginable,” Valleggi says of the completed construct, “as a result of there’s nothing behind it — but there’s nonetheless a CRT, it is the good factor on Earth. Not that that is excellent, for instance on the display there’s a little bit of interference as a result of I didn’t use a shielded cable to carry the video to the monitor.”

Full particulars can be found, in Italian, on the MVVblog YouTube channel; Valleggi has additionally printed design information for the arcade cupboard to Google Drive beneath an unspecified license.
